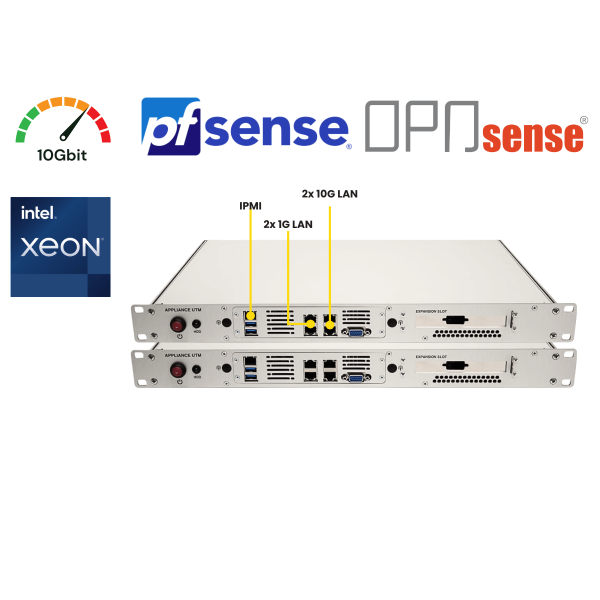

A3 Cluster offers high reliability in a compact and simple system. Suitable for small to medium-sized environments. It provides full software redundancy of all components and full support for the CARP protocol used by pfSense and OPNsense. It features an Intel Xeon 6 or 8 core processor running at 2.7 GHz. The system has a 2U rack mount size and is compatible with all common open source and proprietary operating systems.
Product details:
CPU: Intel Xeon 6 or 8 core
RAM: up to 128 GB
Connectivity: 10 Gbit Ethernet (copper)
Chassis: aluminum
Color: gray
Included in the package: appliance, power supply
Details per device:
Product Name: A3 Cluster
Main Board: Supermicro
Chassis: Rackmount 1U with rack mounting
CPU: Intel Xeon Processor D-1528/D-1541, Single socket FCBGA 1667; 6 Core/8 Core, 16 Threads, 45W
Memory: Up to 256GB Registered ECC DDR4-2400MHz; or 64GB ECC/Non-ECC UDIMM in 4 sockets
NIC:
Dual LAN via: Intel i350-AM2 Gigabit Ethernet
Dual LAN via: SoC 10 Gbase-T
Virtual Machine Device Queues: reduce I/O overhead
Supports: 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Expansion Slots:
PCI-Express: 1 PCI-E 3.0 X16 slot
M.2: Interface: PCI-E 3.0 x4; Format: M Key 2242/2280; Supports SATA devices
Power Consumption: Only 87 Watts at full load with 2.5" SATA HDD
Power Supply: 180W – Gold Level
USB: 2 USB 3.0 ports
Input/Output:
6 SATA3 ports (6Gbps)
1 VGA port
1 IPMI port
2 SuperDOM (Disk on Module) connectors
Front Panel: Power On/Off
LEDs: HDD LED
Supported Systems: VMware ESXi from version 7 onward, Microsoft Windows Server 2016–2019–2022, Linux, Proxmox VE from version 6 onward, Proxmox Backup Server, Ubuntu, Debian, Fedora
Remote Management: Supports Intelligent Platform Management Interface v.2.0; IPMI 2.0 with virtual support over LAN and KVM over LAN with HTML5
Temperature/Humidity: Operates between 0~60°C / 10% - 85% (non-condensing)
Dimensions: 482.6 mm x 285 mm x 43.7 mm (WxDxH)
Available Colors: Aluminum gray
