Appliance A2B Server Aluminum

Single node details:

Product Name: A2B Server Aluminum Appliance
Main board: Supermicro
Chassis: 1U Rackmount with rack mounting using front brackets
CPU: Xeon CPU 4 Core: Intel® Xeon® Processor D-2123IT, CPU TDP support Up to 60W TDP
8 Core Xeon CPU: Intel® Xeon® Processor D-2146NT, CPU TDP supports Up to 80W TDP
Memory: Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; 4 DIMM slots
NIC:
Dual LAN with 10Gbase-T
Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Expansion Slots
M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2
Form Factor: 2280, 3042
Key: M-Key, B-Key
Mini PCI-E
1 PCIe 3.0 x8,
1 PCIe 3.0 x16
1 Mini-PCIe

Power Supply
180W Power Supplies - Gold Level
Consumption
78 Watts of power consumption, at full load with H.D. Sata 2.5"
USB
2 x 2 USB 3.0 ports
Input/Output
SATA
. 4 SATA3 (6Gbps) ports.
Video
. 1 VGA port.
Serial Port/Header
. 1 COM port (header).
SUN
. 1 SuperDOM (Disk on Module) power connectors
For drawer
Front Panel
. Power On/Off;
. System Activity led;
. LAN Activities;
. HDD LED.
For drawer
Remote Management (IPMI)
. Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN.
Temperature/Humidity
Operates between 0~60 degrees centigrade (FAN system recommended)
Dimensions
482.6mm x 285mm x 87.4mm (W x D x H) (2U rackmount);
Weight: 8.00 kg.
Available colours

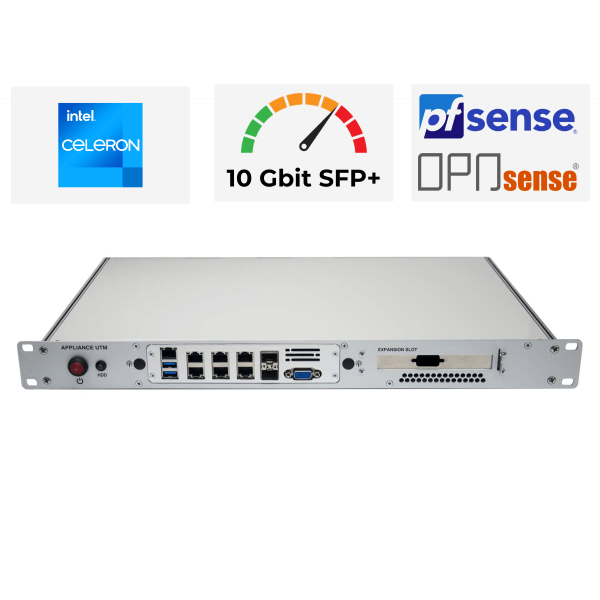

Aluminum Gray (as per product photo)
