B1 Cluster
€1,485.80

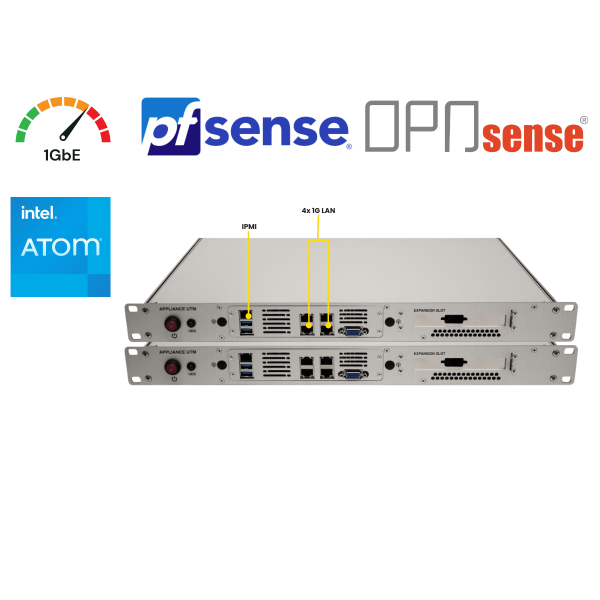

B1 Cluster offers high reliability in a compact and simple system. It is suitable for small and medium-sized environments. It guarantees complete software redundancy of ALL components, full support for the CARP protocol of pfSense and OPNsense, Intel® Atom 4 or 8 core processor, 2U rack mount size, compatibility with all the most common Open Source and non-Open Source operating systems.
Product details:
CPU: Intel Atom 4 or 8 cores
RAM: up to 256 GB
Chassis: aluminum
Color: gray
Package included: Appliance, Power supply
Availability:
In stock
SKU
B1CLA4_25
Product Name: B1 Cluster
Main Board: Supermicro
Chassis: 1U Rackmount with front rack mount brackets
CPU: Intel® Atom – Socket FCBGA1310
Memory:
Up to 256 GB Registered ECC DDR4-2400 MHz
Up to 64 GB Unbuffered ECC / Non-ECC DDR4-2400 MHz
4 available DIMM slots
Power: 180W Power Supply – Gold Level Certification
Expansion Slots:
PCI-E 3.0 x4
M.2 Interface: PCI-E 3.0 x2 and SATA
Supported M.2 Formats: 2242, 2280
M-Key: M-Key
Network Connectivity: 4 LAN ports with Intel® C3000 SoC – 1GbE
Power Consumption: Between 50W and 110W, depending on configuration
USB Ports: 2 USB 3.0 ports (Type-A)
I/O Ports:
1 VGA port
1 dedicated IPMI port
1 SuperDOM port
1 TPM Header connector
Front Panel: Power On/Off button
LEDs: power status, HDD activity, network activity
Supported Operating Systems:
VmWare: ESXi version 7 or higher
Microsoft Windows Server: 2016, 2019, 2022
Linux: Debian, Ubuntu, Fedora
Proxmox VE: version 6 or higher
Proxmox Backup Server
Remote Management:
IPMI 2.0 support with LAN management
KVM over LAN with HTML5 remote console
Compatible with Intelligent Platform Management Interface v.2.0
Environment Operating: Temperature: 0 ~ 60 °C
Humidity: 10% – 85% (non-condensing)
Dimensions: 482.6 mm (W) x 285 mm (D) x 43.7 mm (H)
Color: Gray
