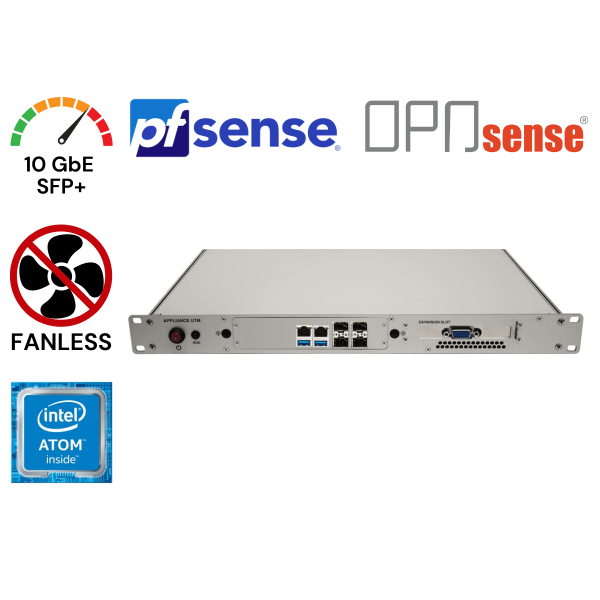

Appliance UTM Fiber – 4 porte 10 GbE SFP+ + 2 porte 1 Gbit


High performance hardware firewall/UTM – Intel C3758 CPU – 8 Core, 2.20 GHz – up to 64 GB DDR4 RAM - 1U rackmount. Equipped by default with n. 2 NICs 1 Gbit and 4 SFP+ 10 Gbit.
Each network port is completely independent and can be configured either as LAN, WAN or DMZ. Front connectivity for convenient access to connectors.

Aluminum alloy chassis for optimal dissipation, system management accessible via VGA port.
Average consumption: 30 Watts, 65 Watts at full load.

The package includes: Appliance, Power Supply, 4 SFP+ 10 Gbit Transceivers.
Not included: Power cord

In stock

Product Name: UTM Fiber Appliance – 4 ports 10 GbE SFP+ + 2 ports 1 Gbit

Main board: Industrial PC

Chassis: 1U Rackmount with rack mounting using front brackets

CPU: Intel® Denverton C3758 (8 Core, up to 2.20 GHz, 25W) Processor

Memory: n.2 slots Support Registered ECC DDR4-2400MHz DIMM up to 256GB or Unbuffered ECC/Non-ECC DDR4-2400MHz DIMM up to 64GB

NIC: Onboard: Support 2 * Intel i210AT GbE + 4 * 10GbE SPF+ ports

Consumption: 30 Watts – 65 Watts of power consumption depending on configuration.


1 Power Button

1 VGA (INT pin header, supports Max. Resolution: 1920×1080@60 Hz)

2 USB 3.2 Gen 3

Front Panel: Buttons: Power On/Off button, Power status LED

Remote Management (IPMI): Not supported

Temperature/Humidity: Operating Temperature 0º - 60º C Storage Temperature -20º - 85º C

Dimensions: 482.6mm x 285mm x 87.4mm (W x D x H) (2U rackmount); Weight: 8.00 kg.

Available Colors: Aluminum Gray (as per product photo)

  • Windows 10 64bit
  • Windows 11 64Bit
  • Linux,
  • FreeBSD
