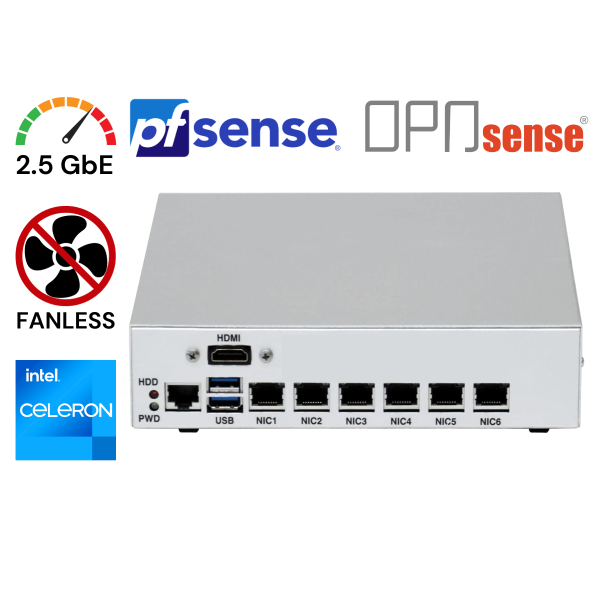

Compact Small UTM 4


Compact size hardware firewall, completely fanless, equipped with 6 2.5 Gbit Ethernet ports, Intel® Celeron 2.60GHz CPU – RAM from 8 up to 32 GB DDR4. Aluminum alloy chassis for optimal dissipation, convenient management via HDMI port.

The 6 network ports are completely independent and can be configured as both LAN and WAN.

Reduced energy consumption between 10 - 15 Watts

Package Includes: Appliance, Power Supply
Not included: Network cable

In stock

Product Name: Compact Small UTM 4
Main board: Industrial PC
Chassis: Aluminum alloy box.
CPU: Intel® Celeron J6412, 2.00GHz – 2.60GHz Burst, 4-Core 4-Thread, 10W (Formerly Elkhart Lake)
n.1 Single Channel DDR4-3200 SO-DIMM slot supports up to 32GB
Onboard: 6 x Intel I225-V PCIe 2.5GbE

Consumption: 5 Watts – 16 Watts of power consumption depending on configuration.
1 Power Button
1 1* HDMI (Max Resolution: 1920×1080@60Hz)
1 USB 3.2 Gen 2
1 USB 2.0 Port
1 RJ45 RS232 Port
6 RJ45 LAN (10/100/1000/2500)
1 +12V 2.5mm Diameter DC Power Jack
Front Panel: Buttons: Power On/Off button, Power status LED
Remote Management (IPMI): Not supported
Temperature/Humidity: Operating Temperature 0 - 60º C Storage Temperature -20 - 85º C
Dimensions: 183.50mm x 45.5mm x 195mm [W x H x D]
Available Colors: Silver aluminium

  • Windows 10 64bit
  • Windows 11 64Bit
  • Linux
  • FreeBSD
