nBox Mini JET4

€599.00

nBox Mini JET4 is designed to revolutionize the way you monitor and manage networks. Integrated with renowned ntopng network analysis software, nBox Mini JET4 is the ideal hardware solution for real-time detailed network monitoring.

Key Features

Power and reliability: nBox Mini JET4 is a fanless appliance, equipped with 4 2.5 Gbit Ethernet ports, Intel CPU, 16 GB of RAM, aluminum alloy chassis, ensuring exceptional performance and long-term reliability. It provides smooth and uninterrupted traffic analysis up to a flow of 2.5 Gbit.

Powered by Ntopng: nBox Mini JET4 ships with Ntopng pre-installed and licensed, enabing out of the box network traffic monitoring. Ntopng enables network performance optimization, ensures security as well as bandwidth usage tracking.

Ease of setup and management: Designed with both network experts and novice users in mind, nBox Mini JET4 is simple to set up and easy to manage. An intuitive web interface allows access to Ntopng's features, making network monitoring accessible to anyone.

Connection versatility: With multiple connectivity options (1 Gbit / 2.5 Gbit), nBox Mini JET4 easily adapts to any network such as Ethernet connections for LAN monitoring, or wireless options for larger areas. nBox Mini JET4 offers flexibility for every scenario.

Continuous support and updates: In additio to powerful hardware, with nBox Mini JET4 you also receive one year of Ntopng software upwates.  We are committed to keeping your system abreast of the latest innovations and security threats for our cutting-edge network monitoring solution.

Why choose nBox Mini JET4?

nBox Mini JET4 is a complete solution for network monitoring and managing. Fully powered by Ntopng and hardware stability, it provides full insight into your network activity while improving security, performance and efficiency.

  • Energy consumption:  between 10 - 15 Watts
  • Warranty: 36 months
  • Included in the package: Appliance, Power Supply

*Network cable not included.



Availability: In stock
SKU
JET4NTP_24

Product name: nBox Mini JET4
Main board: Industrial PC
Chassis: Aluminum alloy box.
CPU: Intel® Celeron J6412, 2.00GHz – 2.60GHz Burst, 4-Core 4-Thread, 10W (Formerly Elkhart Lake)
Memory: 16 GB RAM Single Channel DDR4-3200 SO-DIMM
NIC: Onboard: 4 x Intel I225-V PCIe 2.5GbE
Storage: 256 GB SSD disk.
Consumption: 5 Watts – 16 Watts of power consumption depending on the load.
Warranty: 36 months

Input/Output

1 Power Button
1 HDMI 2.0b (4096*2160@60Hz)
1 USB 3.2 Gen 2 (10 Gb/s)
1 USB 2.0 Port
1 Reset Button
1 RJ45 Type Serial Port

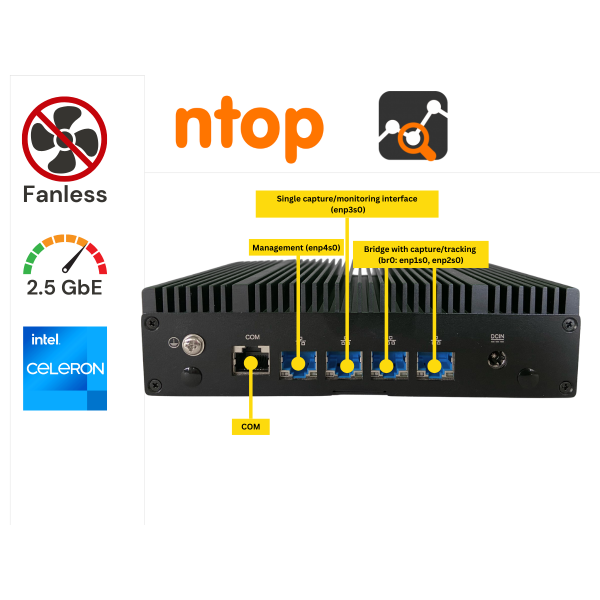

4 RJ45 LAN (10/100/1000/2500)
1 GND Screw
1 +12V 2.5mm Diameter DC Power Jack

Front Panel: Buttons: Power On/Off button, Power status LED
Remote Management (IPMI): Not supported
Temperature/Humidity: Operating Temperature -20 - 60º C
Storage Temperature: -40 - 85º C
Dimensions: 109.2 x 125 x 39.5mm (DxWxH)
Available Colors: black (as per product photo)


Supported ntopng versions:

Ntopng Pro
Ntopng Enterprise M
nProbe



→ See all ntopng all features
→ See all nBox MIni features
