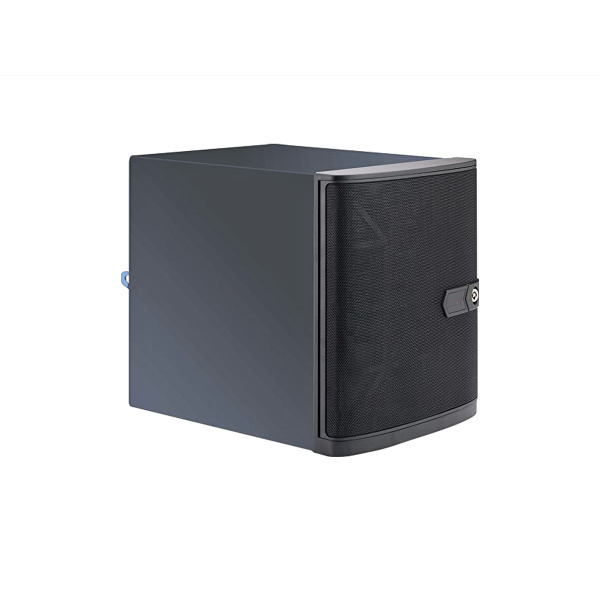

Open NAS Tower B1

€976.00

High performance NAS tower, can mount up to 6 SSD disks or 2 SSD and 4 3.5 "HDD disks, CPU from 4 to 8 Intel Atom 2.2 GHz cores, up to 256 GB ECC RAM, 4 Gigabit INTEL NICs onboard, 250W Flex ATX Multi-output Bronze Power Supply - Mini-Tower Chassis. Also available in Rack mount version.

Package Includes: Appliance, Power Supply, Power Cord
Not included: Network cable

SKU
ONATB1-STM1_22

Product name

Open NAS Tower B1

Main board

Supermicro

Chassis

Tower

CPU

Intel Atom Processor Single Socket FCBGA1310 supported

Memory

Up to 256GB Registered ECC DDR4-2400MHz,
Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots

NIC

Onboard: Quad LAN with Intel® C3000 SoC, 1GbE



Expansion Slot

PCI-E 3.0 x4,

M.2 Interface: PCI-E 3.0 x2 and SATA

M.2 Form Factor: 2242, 2280

M.2 Key: M-Key

Power Supply

180W Power Supplies - Gold Level

Consumption

50 Watts - 110 Watts of power consumption depending on the configuration. Per node.

USB

1 USB 3.0 (Type-A)

4 USB 2.0 (2 rear, 2 via headers)

Input/Output

Video Output:    1 VGA port(s)

Serial Port:          1 COM Port(s) (1 header)

DOM: 1 SuperDOM (Disk on Module) ports

TPM:    1 TPM Header

Front Panel

Buttons: Power On/Off button

LEDs: Power status LED - HDD activity LED - Network activity LEDs

Remote Management (IPMI)

. Supports Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual suppor LAN e supporto KVM su LAN, KVM con HTML 5.

Temperature / Humidity

Opera tra i 0~60 gradi centigradi / 10% - 85% (non-condensing)

Dimensions

Compact Mini-Tower: 279,4mm x 203,2mm x 228,6mm (D x W x H)

Available colours

Aluminum Gray (as per product photo)

BSD

TrueNAS – pfSense - OPNSense



VmWare: ESXi 7 and later

Microsoft

Windows 2016 Server;
Windows 2019 Server;

Windows 2022 Server;

Linux

Proxmox VE 6 and later

Proxmox Backup Server

Ubuntu;
Debian;
Fedora;

Request an operating system certification.
