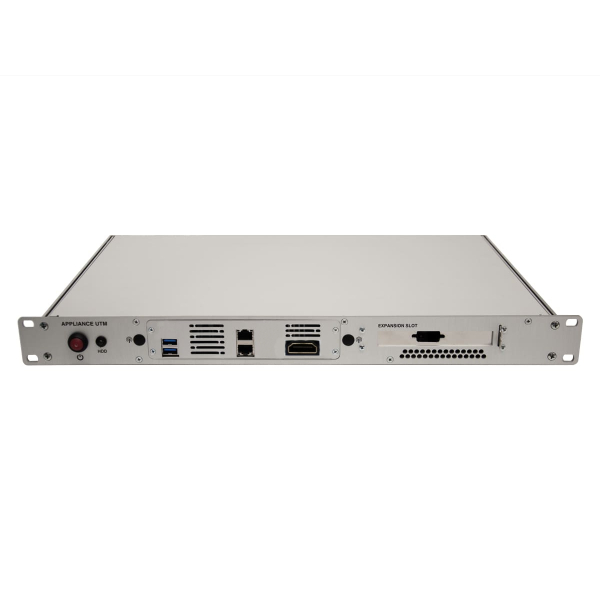

Proxmox Backup Server Rack 1R
Proxmox Backup Server Rack 1R is the solution for small companies that allows you to have SATA or SSD technology in a compact 1U appliance, tested and certified for Proxmox Backup Server. It can mount up to 6 SSDs or 2 3.5” SATA disks, Intel Atom 4 Core CPU, 8 GB RAM, 2 onboard INTEL Gigabit NICs. This model is also available in the Tower version.
Proxmox Backup Server (PBS) is the innovative Proxmox backup solution that allows you to create and configure virtual resource backup environments in a simple and secure way, both locally and remotely.
Package Includes: Appliance, Power Supply, Power Cord
Not included: Network cable
Availability:
In stock
SKU
PBS1R4C-RK_23
|
Product name |
Proxmox Backup Server Tower B1 |
|
Main board |
Supermicro |
|
Chassis |
Tower |
|
CPUs |
Intel Atom Processor Single Socket - Intel Atom® x5-E3940 Processor |
|
Memory |
Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket |
|
NIC |
Onboard: Dual GbE LAN with Intel® i210-AT |
|
Diet |
180W Power Supplies - Gold Level |
|
Consumption |
15 Watts – 40 Watts of power consumption depending on configuration. |
|
USB |
1 USB 3.0 (Type-A) 4 USB 2.0 (2 rear, 2 via headers) |
|
Inputs/Outputs |
Video Output: 1 HDMI port(s) Serial Port: 1 COM Port(s) (1 header) |
|
Front Panel |
Buttons: Power On/Off button LEDs: Power status LED - HDD activity LED - Network activity LEDs |
|
Remote Management (IPMI) |
Not present |
|
Temperature/Humidity |
Operates between 0~60 centigrade / 10% - 85% (non- condensing ) |
|
Dimensions |
Compact Mini-Tower: 279.4mm x 203.2mm x 228.6mm (D x W x H) |
|
Available colours |
Gray Aluminum (as per product photo) |
|
BSD extension |
pfSense - OPNSense |
|
|
|
|
Microsoft |
Windows 2016 Servers; Windows 2022 Servers; |
|
Linux |
Proxmox VE from 6 onwards Proxmox Backup Server ubuntu;
|
