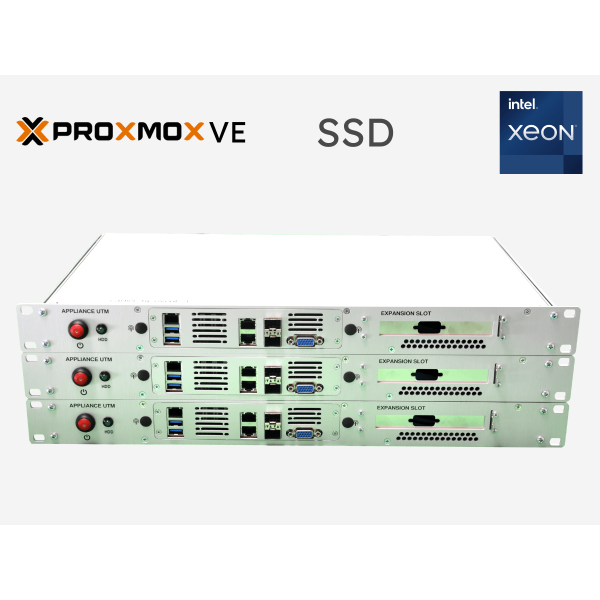

Proxmox Cluster A3 Server

Proxmox hyperconverged cluster composed of 3 compact 1U Rackmount Servers, tested and certified for Proxmox VE, designed for high reliability and high resource uptime.

It offers high performances provided by Intel Xeon CPUs and SSD technology.
Up to 18 SSD disks for hyperconverged data storage and operating system. The single node has by default n. 2 10 Gbit NICs (dedicated to Ceph) and 2 1 Gbit NICs.

Below you can choose how to configure the 3 nodes that make up the Cluster. Each of the 3 Servers will have the same hardware components.
The package includes: n. 3 servers, rack mounting brackets for each node, n. 1 power cable for each node and any network cabling if required.

SKU
CA33USUC3S18P3TG6G6_21

Product Name: Proxmox Cluster A3 Server
Main board: Supermicro Super X10SDV
Chassis: 1U rackmount rackmount
CPU: Intel® Xeon® processor, Single socket FCBGA 1667
Memory: Up to 128GB ECC RDIMM DDR4 2400MHz ECC UDIMM in 4 sockets
NIC: Onboard: 2 10GBase-T LAN ports Intel chipset, 2 1GBase-T LAN ports Intel chipset
Optional:
Expansion Slots: No expansion allowed.
Power Supply: 180W Single Power Supplies
Consumption: 180 Watts - 650 Watts of power consumption depending on the configuration.
USB: 2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)


Input / Output:
SATA 6 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports, 2 RJ45 10GBase-T ports, 1 RJ45 Dedicated IPMI LAN port
USB 4 USB 2.0 ports (4 headers, Type A)), 2 USB 3.0 ports (2 rear)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header


Front panel
Buttons: Power On / Off button
LEDs: Power status LED - HDD activity LED - Network activity LEDs



Remote Management (IPMI)
Support for Intelligent Platform Management Interface v.2.0;
IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.

Temperature: Operates between 0 ~ 60 degrees centigrade

Dimensions: 482.6mm x 285mm x 43.7mm (W x D x H) (1U rackmount)

Available Colors: Aluminum (as shown)

VmWare: ESXi from 6 and up


Microsoft:
- Windows 2008 Server;
- Windows 2012 Server;
- Windows 2016 Server;
- Windows 2019 Server;


Linux:
Proxmox VE from 5 onwards
Proxmox Backup Server
- Ubuntu;
- Debian;
- Fedora;



To install a different operating system please contact us.
