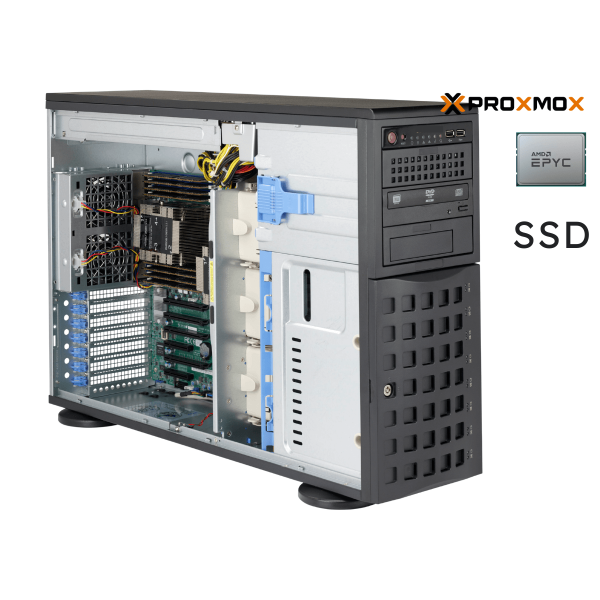

Proxmox VE Server Tower T2

Tower server tested and certified for Proxmox VE, designed for companies that need power, flexibility and reliability. It offers high performances provided by AMD EPYC™ CPUs, up to 8 2.5" SSD or 3.5" Hot-Swapp SATA disks, all in the Enterprise Server range, equipped by default with on-board dual 10 Gbit copper connectivity, redundant Titanium Level power supply and dedicated IPMI port for remote server management. The configuration options allow the installation of copper or fiber connectivity 1, 10, 25, 40 and 100 Gbit.

The package includes: the server, n. 1 power cable.

In stock

Product Name Proxmox VE Server Tower T2
Supermicro H12SSL-NT main board
Chassis Tower
Single AMD EPYC™ 7002/7003 Series Processor CPU
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Memory 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Onboard NIC: 2 Dual Gigabit LAN ports
up to 8 NIC 1 Gbit Copper RJ45 connector
up to 8 NICs 10 Gbit Copper RJ45 connector
up to 8 NIC 10 Gbit SFP+ Fiber Optic LC connector
up to 8 NIC 1 Gbit SFP Fiber Optic LC connector
up to 6 25Gbit QSFP+ NICs
up to 6 40Gbit QSFP+ NICs
up to 6 100Gbit QSFP28 NICs

PCI-Express Expansion Slots:
5 PCI-E 4.0 x16 (FH),
2 PCI-E 4.0 x8 (FH)

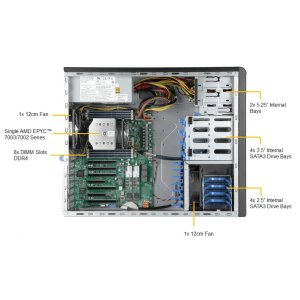

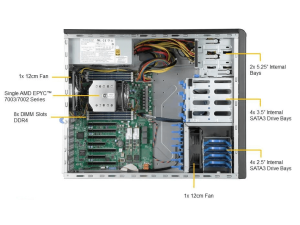

Drive Bays:
8 internal 2.5”/3.5" SATA3 drive bays Hot-Swapp
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factors: 2280, 22110
M.2 Key: M-Key
Power Supply 1200W (1 + 1) Redundant Titanium Level Certified High-Efficiency Power Supply
Consumption 180 Watts – 650 Watts of power consumption depending on the configuration.
USB 6 USB 3.0 ports (4 rear, 2 via header),
1 VGA ASPEED AST2500 BMC graphics
SATA inputs/outputs
8 SATA (6Gbps) port(s)

1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports (Dual 10GBase-T LAN via Broadcom BCM57416)

6 USB 3.0 ports (4 rear, 2 via header)


Serial Port
1 COM Port (rear)

1 SuperDOM (Disk on Module) port
1 TPM 2.0 header

Front Panel Buttons: Power On/Off button - System Reset button
LEDs: Power status LED - HDD activity LED - Network activity LEDs - System information (overheat/UID) LED
Remote Management (IPMI) . Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.
Temperature Operates between 10~35 centigrade

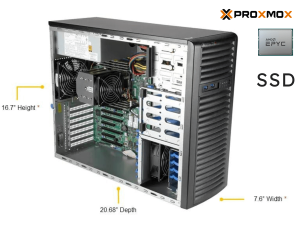

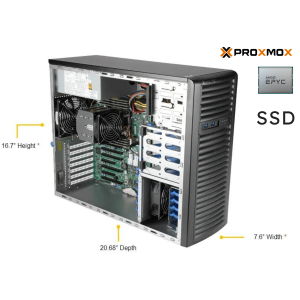

Tower dimensions: Height (452 mm) - Width (178 mm) - Depth (647 mm)
Available Colors Black (as per product photo)

VmWare VmWare: ESXi 6 and newer


Windows 2012 Servers;
Windows 2016 Servers;
Windows 2019 Servers;
Windows 2022 Servers;


Proxmox VE 6and newer
Proxmox Backup Server
. ubuntu;
. Debian;
. Fedoras;
. Suse

To install another operating system please contact us.
