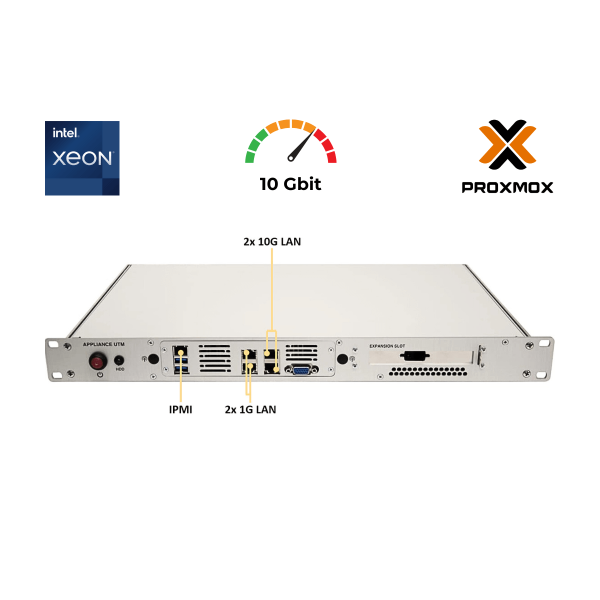

Virtual Appliance A3 Server

€1,445.00

The Virtual Appliance A3 Server is a compact and cost-effective solution designed for virtualization environments that require significant computing power. Optimized to support intensive workloads, this server offers high performance while maintaining a small form factor, making it ideal for businesses with limited space.

It has been tested and certified for Proxmox VE, ensuring seamless integration and proven reliability. With the Virtual Appliance A3 Server, you can efficiently manage your virtual resources, providing a robust and versatile platform to meet modern business needs.

Through the Proxmox VE virtualization environment, you can run multiple virtual servers on a single physical server.

Product Details:

Rack: 1U rackmount
RAM: Up to 128 GB
CPU: 6 Core / 8 Core Intel Xeon CPU
Connectivity: 10 Gbit over Copper
Disks: Up to 6 SSDs or 2 SATA 3.5” drives
Average Consumption: 54 Watts, 87 Watts at full load
Front Connectivity
Power Cable: Not included
Included in the Package: Appliance, Power Supply

View all details ↓

Availability:

In stock

SKU

A3VRAPA4GBS_17

CPU

NIC (Network Interface Card)

Warranty Extension

Disk

Operating System

RAM espansion

Support (Only for Proxmox)

Qty:

Details

Dettagli Prodotto

No.	Specifiche	Dettagli
1	Nome Prodotto	Virtual Appliance A2 Server
2	Main board	Server Supermicro
3	Chassis	1U rack mount aluminum chassis
4	CPU	Intel® Xeon® processor D-1518, Single socket FCBGA 1667, 6 Core / 8 Core, 8 Threads, 35W
5	Memoria	Up to 128GB ECC RDIMM DDR4, 2133MHz or 64GB ECC/non-ECC, UDIMM in 4 sockets
6	NIC	Dual 10G SFP+ from D-1500 SoC Quad 1GbE with Intel I350-AM4 Dual 1GbE with Intel I210
7	Slot di Espansione	PCI-Express: 2 PCI-E 3.0 x8 slots M.2: Interface: PCI-E 3.0 x4 Form Factor: M Key 2242/2280/22110 Support SATA devices Mini PCI-E: Interface: PCI-E 2.0 x1 Support mSATA
8	Alimentazione	Internal PSU, 180W, SINGLE, active PFC
9	Consumo	Only 58 Watts of power consumption, at full load with H.D. SATA 2.5"
10	USB	2 USB 3.0 ports (rear), 5 USB 2.0 ports (4 via headers, 1 Type A)
11	Input / Output	SATA: 4 SATA3 (6Gbps) ports Video: 1 VGA port Serial Port / Header: 1 COM port (header) SUN: 2 SuperDOM (Disk on Module) power connectors
12	Pannello Frontale	Power On / Off System Activity LED LAN Activity LED HDD LED
13	Gestione Remota (IPMI)	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual support over LAN and KVM support over LAN
14	Temperatura	Operates between 0 ~ 60°C (suggest to use FAN system)
15	Dimensioni	482.6mm x 285mm x 43.7mm (W x D x H) (1U rackmount)
16	Colori Disponibili	Silver aluminum
