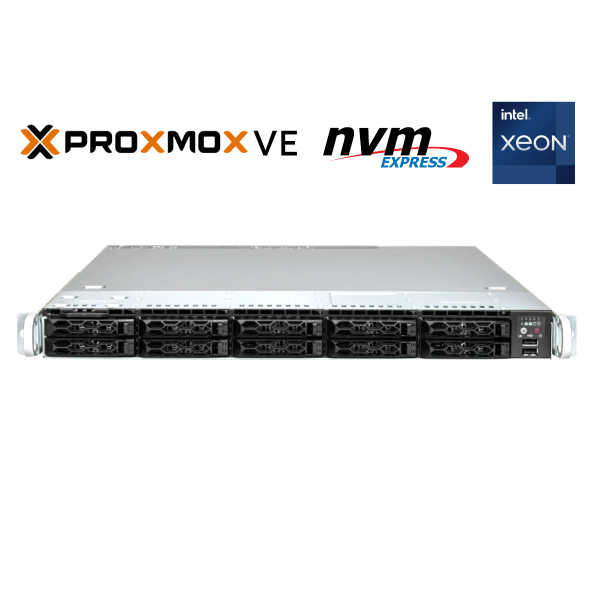

1U Rackmount Server tested and certified for Proxmox VE, designed for companies that need performance and reliability. It offers high performances provided by Intel The server ships with rack-mounting sleds.
The package includes: the server, the rack mounting brackets, n. 2 power cables
Product Name Proxmox Server Datacenter S1C
Main board Supermicro X13SEDW-F
Chassis Rackmount 1U with rack mounting using sleds
GPU Supports up to 2 single-width GPU(s) - NVIDIA PCIe: A2,L4
CPU Single Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors. Up to 350W TDP
Memory Up to 16 DIMMs; Supports 3DS DDR5 RDIMM. Up to 4800 MHz
NIC Supports:
NIC 1 Gbit Copper RJ45 connector
NIC 10 Gbit Copper RJ45 connector
NIC 10 Gbit SFP+ Fiber Optic LC connector
25Gbit SFP28+ NIC
40 Gbit QSFP+ NIC
100Gbit QSFP+ NIC
PCI-Express Expansion Slot
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x32 Left Riser Slot
M.2:
M.2 Interface: PCI-E 3.0 x4; SATA
Form Factor: 2280, 22110
Key: M-Key
Power 860W Redundant Titanium Level power supplies PER NODE
Consumption 120 Watts – 750 Watts of power consumption depending on configuration and workload.
USB 2 USB 3.2 ports (rear),
2 USB 2.0 ports (front)
Input/Output SATA 12 SATA (6Gbps) port(s)
LAN 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 2.0 port(s) (front)
2 USB 3.2 port(s) (rear)
Video 1 VGA 2 port(s)
Serial Port 2 COM Port(s) ( 1 rear)
Front Panel Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status)
Remote Management (IPMI) . Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.
Operating Temperature Operates between 10~35 degrees centigrade
Dimensions 60cm x 44cm x 43mm (W x D x H) (1U rackmount)
Available Colors Black (as per product photo)
Microsoft Windows 2016 Server;
Windows 2019 Server;
Windows 2022 Server;
Linux Proxmox VE from 7 onwards
Proxmox Backup Server
. Ubuntu;
. Debian;
. Fedora;
