Server Proxmox Datacenter S2B

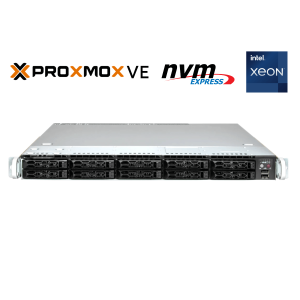

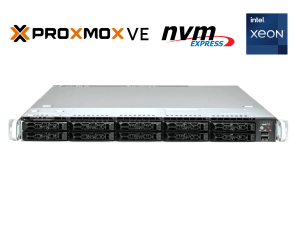

Rackmount 2U server tested and certified for Proxmox VE, designed for hyperconverged technologies such as Ceph and companies that need high performance, high scalability and reliability.
It offers high performances provided by Intel Xeon processors, high I / O performances provided by NVMe disks, equipped by default with 10 Gbit onboard connectivity, redundant power supplies.

The package includes: the server, the rack mounting brackets, n. 2 power cables.

Availability: In stock

SKU

S2USUC2S26P2TG4_22

CPU

RAM

Pre-Installed Operating System

Operating System Storage

Data Storage

Disk quantity

Data Storage Raid Configuration

Additional network adapters - Slot 1

Additional network adapters - Slot 2

Additional network adapters - Slot 3

Optional warranty

Technical support hours (only for Proxmox):

Details

Product Name	Server Datacenter S2B
Main board	Supermicro X12DHM-6
Chassis	2U rackmount with rack mounting by means of sleds
CPU	3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Memory	Up to 8TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 8TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 8TB Intel® Optane™ Persistent Memory, DDR4-3200MHz, in 32 DIMM slots
NIC	Onboard: 4x 10GBase-T ports with Intel X557 . 1x Realtek RTL8211E PHY (dedicated IPMI remote control) Optional: . up to 4 NICs 40 Gbit QSFP +; . up to 8 NIC 1 Gbit Copper RJ45 connector; . up to 8 NIC 10 Gbit Copper RJ45 connector; . up to 8 NIC 10 Gbit SFP + Fiber Optic LC connector; . up to 8 NIC 1 Gbit SFP Fiber Optic LC connector.
Expansion Slots	PCI-Express: . 2 PCI-E 3.0 x16 (FH, 10.5" L) . 1 PCI-E 3.0 x8 (LP) Hot-swap: . 24 Hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC) . 2 rear Hot-swap 2.5" SATA drive bays M.2: . 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts . 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
Power	1600W Redundant Power Supplies with PMBus
Consumption	Only 450 Watts of power consumption, fully loaded with H.D. Sata 2.5 "
USB	4 USB 3.2 Gen 1 port(s) (2 front; 2 rear) 3 USB port(s) (2 headers; 1 Type A) 2 USB 2.0 port(s) (2 rear)
Input / Output	NVMe . 24 NVMe ports Video . 2 VGA ports (1 rear, 1 onboard) Serial Port/Header . 1 Serial port

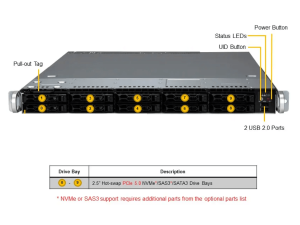

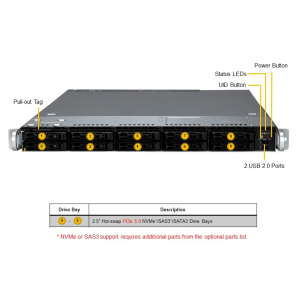

Front Panel	. Power On/Off button . System Reset button . Power status LED . HDD activity LED . Network activity LEDs . System information . (overheat/UID) LED
Remote Management (IPMI)	. Support for Intelligent Platform Management Interface v.2.0; . IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.
Supported Operating Systems	VmWare: . ESXi 6 and later. Microsoft: . Windows 2008 Server; . Windows 2012 Server; . Windows 2016 Server; . Windows 2019 Server. Linux: . Proxmox VE6 and later. . Proxmox Backup Server; . Ubuntu; . Debian; To install another operating system please contact us
Temperature	It operates between 10 ~ 38 degrees centigrade
Dimensions	73.5 x 40 x 203 mm (W x D x H) (2U rackmount)
Available Colors	Black
