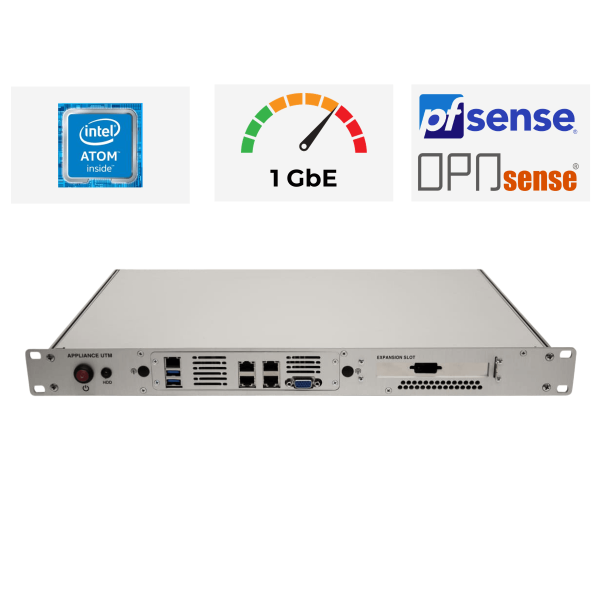

B1 Server Aluminum Appliance

€782.00

Firewall hardware dalle prestazioni elevate - Hardware silenzioso - 1U rackmount – Processore 4 Core / 8 Core Intel Atom - Consumo medio: 25 Watt - Connettivià frontale per un comodo accesso ai connettori.

La confezione include: Appliance, Alimentatore
Non include: Cavo di alimentazione

SKU
B1SRVA48S_22

Single node details:

Product Name

Appliance B1 Server Aluminum

Main board

Supermicro

Chassis

Rackmount 1U with front brackets

CPU

Intel Atom Processor Single Socket FCBGA1310 supported

Memory

Up to 256GB Registered ECC DDR4-2400MHz,

Up to 64GB Unbuffered ECC / Non-ECC DDR4-2400MHz; in 4 DIMM slots

NIC

Onboard: Quad LAN with Intel® C3000 SoC, 1GbE



Expansion Slot

PCI-E 3.0 x4,

M.2 Interface: PCI-E 3.0 x2 and SATA

M.2 Form Factor: 2242, 2280

M.2 Key: M-Key

Power Supply

180W Power Supplies - Gold Level

Consumption

50 Watt - 110 Watts of power consumption depending on the configuration. Per node

USB

1 USB 3.0 (Type-A)

4 USB 2.0 (2 rear, 2 via headers)

Input / Output

Video Output: 1 VGA port (s)

Serial Port: 1 COM Port (s) (1 header)

DOM: 1 SuperDOM (Disk on Module) ports

TPM: 1 TPM Header

Front Panel

Buttons: Power On / Off button

LEDs: Power status LED - HDD activity LED - Network activity LEDs

Remote Management (IPMI)

. Support for Intelligent Platform Management Interface v.2.0;

. IPMI 2.0 with virtual support on LAN and KVM support on LAN, KVM with HTML 5.

Temperature / Humidity

Operates between 0 ~ 60 degrees centigrade / 10% - 85% (non-condensing)

Dimensions

482.6mm x 285mm x 43.7mm (W x D x H) (1U rackmount) - node

Available Colors

Aluminum Gray (as per product photo)



VmWare: ESXi from 7 and later

Microsoft

Windows 2016 Server;

Windows 2019 Server;

Windows 2022 Server;

Linux

Proxmox VE from 6 en later

Proxmox Backup Server

Ubuntu;

Debian;

Fedora;

To install a different operating system, request an Operating System Certification
