Appliance A3 Server Aluminum

€1,299.99

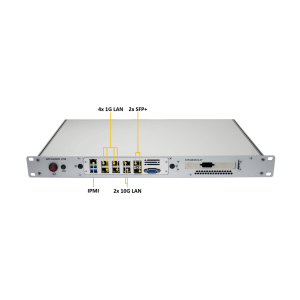

Datacenter-level hardware firewall, designed for large computing needs - 1U rackmount - up to 128 GB RAM and 10 Gbit connectivity on Copper - CPU 6 Core / 8 Core Intel Xeon 2.7 GHz - up to 6 SSDs or 2 SATA disks 3.5 ”- Average consumption: 54 Watts - Consumes 87 Watts at full load - Front connectivity for convenient access to connectors.
Package includes: Appliance, Power Supply
Not included: Power cable



SKU
A3SRVA4GBS_17
1 Product Name Appliance A3 Server Aluminum
2 Main board Server Supermicro
3 Chassis 1U rack mount aluminum chassis
4 CPU Intel® Xeon® processor D-1528/ D-1541, Single socket FCBGA 1667; 6 Core / 8 Core , 16 Threads, 45W
5 Memory Up to 256GB ECC RDIMM DDR4, 2400MHz or 64GB ECC / non-ECC, UDIMM in 4 sockets
6 NIC . Dual LAN via Intel® i350-AM2 Gigabit Ethernet;
. Dual LAN via 10GBase-T SoC;
. Virtual Machine Device Queues reduce I / O overhead;
. Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output.
7 Expansion Slots

PCI-Express
. 1 PCI-E 3.0 x16 slots.

M.2
. Interface: PCI-E 3.0 x4;
. Form Factor: M Key 2242/2280;
. Support SATA devices.

8 Power 180W Power Supplies - Gold Level
9 Consumption Only 87 Watts of power consumption, at full load with H.D. Sata 2.5 "
10 USB 2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)
11 Input / Output

SATA
. 6 SATA3 (6Gbps) ports.

Video
. 1 VGA port.

Serial Port / Header
. 1 COM port (header).

DOM
. 2 SuperDOM (Disk on Module) power connectors.

12 Front Panel . Power On / Off;
. System Activity led;
. LAN Activity;
. HDD Led.
13 Remote Management (IPMI) . Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN.




15 Temperature Operates between 0 ~ 60 degrees centigrade 10% - 85% (non-condensing)
16 Dimensions 482.6mm x 285mm x 43.7mm (W x D x H) (1U rackmount)
17 Available Colors Silver aluminum

VmWare: ESXi 7 and later

Microsoft

Windows 2016 Server;
Windows 2019 Server;

Windows 2022 Server;

Linux

Proxmox VE dalla 6 and later

Proxmox Backup Server

Ubuntu;
Debian;
Fedora;

Request and operating system certification.

1 Product Name A3 Server
2 Main board Server Supermicro
3 Chassis 1U rack mount aluminum chassis
4 CPU Intel® Xeon® processor D-1541, Single socket FCBGA 1667; 6 Core / 8 Core , 16 Threads, 45W
5 Memory Up to 128GB ECC RDIMM DDR4, 2400MHz or 64GB ECC / non-ECC, UDIMM in 4 sockets
6 NIC . Dual LAN via Intel® i350-AM2 Gigabit Ethernet;
. Dual LAN via 10GBase-T SoC;
. Virtual Machine Device Queues reduce I / O overhead;
. Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output.
7 Expansion Slots

PCI-Express
. 1 PCI-E 3.0 x16 slots.

M.2
. Interface: PCI-E 3.0 x4;
. Form Factor: M Key 2242/2280;
. Support SATA devices.

8 Power Internal PSU, 180W, SINGLE, active PFC
9 Consumption Only 87 Watts of power consumption, at full load with H.D. Sata 2.5 "
10 USB 2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)
11 Input / Output

SATA
. 6 SATA3 (6Gbps) ports.

Video
. 1 VGA port.

Serial Port / Header
. 1 COM port (header).

DOM
. 2 SuperDOM (Disk on Module) power connectors.

12 Front Panel . Power On / Off;
. System Activity led;
. LAN Activity;
. HDD Led.
13 Remote Management (IPMI) . Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN.
14 Supported Operating Systems

Each S.O. it will be installed in the 32 or 64 bit version.
. pfSense;
. free BSD;
. Zeroshell;
. ipCop;
. ipFire;

Microsoft:
. Windows 7;
. Windows 8;
. Windows 10;
. Windows 2008 Server;
. Windows 2012 Server;
. Proxmox;
. VmWare ESXi.

Linux:
. Ubuntu;
. Debian;
. Centos;
. Fedora;
. Astaro UTM 9.1 and newer;
. Kerio Control;
. Endian Firewall;
. general Linux OS.

To install another operating system contact us by filling out this request
15 Temperature Operates between 0 ~ 60 degrees centigrade (suggest using the FAN system)
16 Dimensions 482.6mm x 285mm x 43.7mm (W x D x H) (1U rackmount)
17 Available Colors Silver aluminum
