Proxmox VE Cluster Datacenter M1A

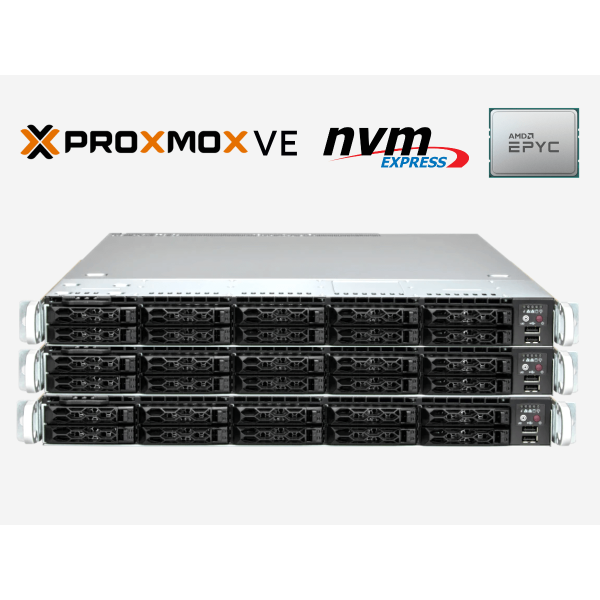

Hyperconverged Proxmox cluster composed of 3 1U Rackmount Servers tested and certified for Proxmox VE, designed for companies that need high reliability and high resource uptime.
It offers high performances provided by the fourth generation AMD EPYC™ 9400 Series Processor CPU, up to 384 Cores, up to 30 Server Datacenter class SSD/NVMe disks, 10 Gbit copper or fiber connectivity dedicated to resources (VM and CT) and 25/40/100 Gbit QSFP+ cards dedicated to hyperconvergence (Ceph), redundant power supplies on both Nodes and Switches. The server ships with rack-mounting sleds for each node.
It is supplied, depending on needs, with a single switch or in a redundant configuration to eliminate any SPOF (single point of failure). The Networking solution is proposed depending on the hardware characteristics of the Cluster.
Below you can choose how to compose the 3 nodes that make up the Cluster. Each of the 3 Servers will have the same hardware components. You will also be able to choose whether the Cluster will be equipped with a single or double switch.
If you don't know which options to choose, leave the default value. Before sending the quote, our accounts will validate the components you have chosen.
Availability:
In stock
SKU
M1ASUC1S10P2TG2_23
Product name
Proxmox Cluster Datacenter M1A
Main board
H13SSW
Chassis
Rackmount 1U with rack mounting using sleds
CPU
Single 4th Generation AMD EPYC™ 9004 Series Processors
Memory
12 DIMMs; Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
NIC
Supports the following. connectivity:
NIC 1 Gbit Copper RJ45 connector
NIC 10 Gbit Copper RJ45 connector
NIC 10 Gbit SFP+ Fiber Optic LC connector
25Gbit SFP28+ NIC
40 Gbit QSFP+ NIC
100Gbit QSFP+ NIC
Integrated IPMI 2.0 + KVM with dedicated LAN
Expansion Slots
1 PCIe 5.0 x16 Right Riser Slot,
1 PCIe 5.0 x16 Left Riser Slot,
2 PCIe 5.0 x16 AIOM Networking SlotM.2 Interface: 2 PCI-E 4.0 x4
M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2280/22110
Key: M-Key
Diet
860W Redundant Titanium Level PER NODE
Consumption
100 Watts – 750 Watts of power consumption depending on configuration.
USB
2 USB 2.0 port(s) (2 front)
2 USB 3.0 port(s) (2 rear)
Input/Output 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (10x 2.5" SATA by default)
LAN Networking provided via AIOM - 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (rear)
COM 1 COM Port (rear)
Video 1 VGA port
Front Panel
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status)
Remote Management (IPMI)
. Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.
Temperature
Operates between 10~35 degrees centigrade
Dimensions
55cm x 41cm x 322mm (W x D x H) (1U rackmount)
Available colours
Black (as per product photo)
VmWare ESXi 6 and newer
Microsoft Windows 2016 Server;
Windows 2019 Server;
Windows 2022 Server;
Linux Proxmox VE from 7 and newer
Proxmox Backup Server
. Ubuntu;
. Debian;
. Fedora;
