Cluster Proxmox S1B

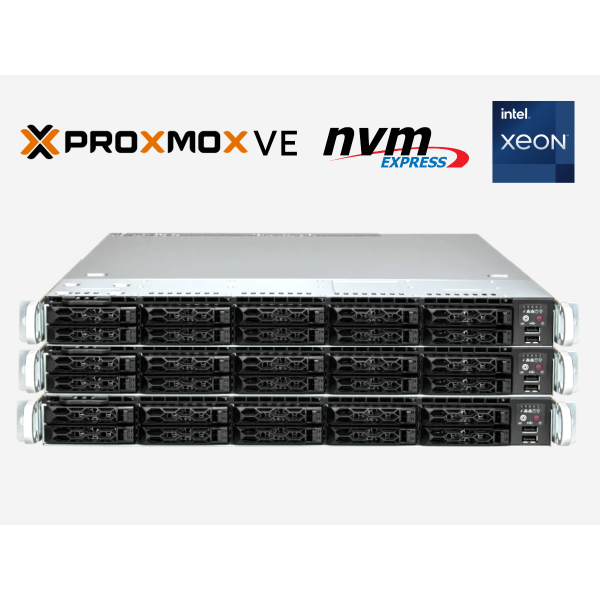

Proxmox hyperconverged cluster composed of 3 1U Rackmount Servers tested and certified for Proxmox VE, designed for companies that need high reliability and high resource uptime.

It offers high performance provided by Intel Xeon CPU, up to 30 SSD Server disks, equipped by default with dual 10 Gbit copper onboard connectivity and 40 Gbit QSFP cards dedicated to hyperconvergence (Ceph), redundant power supplies on each node. The server ships with rack mounting slides for each node.

Below you can choose how to compose the 3 nodes that make up the Cluster. Each of the 3 Servers will have the same hardware components.

The package includes: n. 3 servers, rack mounting brackets for each node, n. 2 power cables for each node.

SKU
S1BSUC1S10P2TG2_22

Product name

Proxmox Cluster Datacenter S1B

Main board

Supermicro X12SPW-TF

Chassis

1U rackmount with rack mounting with slides





CPU

3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Memory

Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz

NIC

Onboard: Dual LAN with 10GBase-T with Intel® X550
Optional:

up to 8 NIC 1 Gbit Copper connector RJ45

up to 8 NIC 10 Gbit Copper connector RJ45

up to 8 NIC 10 Gbit SFP+ Optical fiber connector LC

up to 8 NIC 1 Gbit SFP Optical fiber connector LC

Expansion Slot

PCI-Express

1 PCI-E 3.0 x8 (in x16 slot),

1 PCI-E 3.0 x32 Left Riser Slot

M.2:
M.2 Interface: PCI-E 3.0 x4; SATA

Form Factor: 2280, 22110

Key: M-Key

Power supply

750W Redundant Platinum Level power supplies PER NODE

Consumption

80 Watt – 350Watts of power consumption depending on the configuration.

USB

2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)

Input/Output

SATA      10 SATA (6Gbps) port(s)

LAN       1 RJ45 Dedicated IPMI LAN port

               2 RJ45 10GBase-T LAN ports

USB      4 USB 3.2 Gen 1 port(s) (2 front; 2 rear)

              3 USB port(s) (2 headers; 1 Type A)

              2 USB 2.0 port(s) (2 rear)

Video  1 VGA 2 port(s)

Serial Port 2 COM Port(s) (1 header; 1 rear)

DOM    2 SuperDOM (Disk on Module) port with built-in power

Front Panel

Power LED

Hard drive activity LED

Network activity LEDs

System Information LED

Information LED (temp., status)

Remote Management(IPMI)

. Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0with virtual support over LAN and support KVM forLAN, KVM con HTML 5.

Temperature

It operates between 10 ~ 38 degrees centigrade

Dimensions

54.5 x 40.25 x 320 mm (W x D x H) (1U rackmount)

Available colours

Black (as per product photo)

VmWare

ESXi 6 and older

Microsoft

Windows 2016 Server;
Windows 2019 Server;

Windows 2022 Server;



Linux

Proxmox VE 6 and older

Proxmox Backup Server

. Ubuntu;
. Debian;
. Fedora;



Request the Certification of an Operative System.
