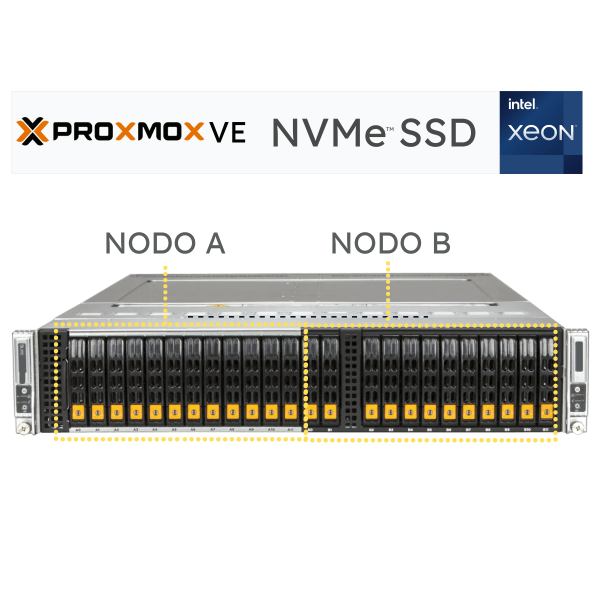

Proxmox VE Two Node Cluster featuring 1 single 2U System, whith 2 high-performance servers, certified for Proxmox VE, designed for companies that need high reliability and efficiency, high levels of data retention (protection against Ransomware) and resource uptime.
It offers high performances provided by the fourth generation Intel Xeon™ CPU, up to 64 Cores per node, up to 24 Server Enterprise Datacenter class NVMe disks, 10 Gbit and/or 25 Gbit copper or fiber connectivity dedicated to resources (VM and CT ) and redundant power supplies. The System comes with rack mount sleds.
The solution involves the use of Proxmox Backup Server (PBS) as an additional node. Proxmox Backup Server (PBS) is the innovative Proxmox backup solution that allows you to create and configure virtual resource backup environments easily and securely, both locally and remotely.
It is supplied, depending on the needs, with a single switch or in a redundant configuration to eliminate any SPOF (single point of failure). The Networking solution is proposed according to the hardware characteristics of the Cluster.
Below you can choose how to compose the 2 nodes of the Cluster and the specifications of the Proxmox Backup Server. Each of the 2 Servers of the Cluster will have the same hardware components. You can also choose whether the Cluster will be equipped with a single or double switch.
—
Product name |
Proxmox Cluster Datacenter BigTwinN2 |
Main board |
Supermicro X13DET-B |
Chassis |
Rackmount 2U with rack mounting using slides included in the package |
PBS specifications |
The hardware features of the PBS System vary according to the model chosen. For the complete list see the page: |
CPUs |
Dual Socket E (LGA 4677) 4th Gen Intel® Xeon® Scalable processors Intel Xeon CPU Max Series with high bandwidth memory (HBM) Supported cores : Up to 60C/120T; |
Memory |
16 DIMM slots up to 4TB: 16x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 RDIMM |
NIC |
3 slots, each configurable with:
4 NIC 1 Gbit Copper, Intel/ Broadcom chipset RJ45 connector – PER NODE 2 NIC 10 Gbit Copper card, Intel/ Broadcom chipset RJ45 connector – PER NODE 4 NIC 10 Gbit Copper card, Intel/ Broadcom chipset RJ45 connector – PER NODE Card 2 NIC 10 Gbit SFP+ Fiber, LC connector Intel chipset/ Broadcom Transceiver Included. – BY NODE Card 4 NIC 10 Gbit SFP+ Fiber, LC connector Intel chipset/ Broadcom Transceiver Included. – BY NODE Intel/ Broadcom 25Gbit SFP28 NIC Card – PER NODE Card , Intel/Broadcom X710 Chipset Transceiver Included . – BY NODE
Integrated IPMI 2.0 + KVM with dedicated LAN |
Expansion Slots per Node |
PCI Express: PCI-Express ( PCIe ) 2 PCIe 5.0 x8 LP slot(s) 1 PCIe 5.0 x16 LP slot(s)
Drive Bays per Node: 12x 2.5" hot-swap NVMe /SATA drive bays (2x PCI-E 5.0 NVMe /SATA and 10x PCI-E 4.0 NVMe /SATA)
M.2: 2 M.2 NVMe |
Diet |
2 200W Redundant Power Supplies |
Consumption |
420 Watts – 1850 Watts of power consumption depending on configuration. |
USB |
2 USB 3.1 port(s) (2 rear) |
Front panel |
Buttons: Power On/Off button - System Reset button LEDs: Power status LED - HDD activity LED - Network activity LEDs - System information (overheat/UID) LED |
Remote Management (IPMI) |
. Support for Intelligent Platform Management Interface v.2.0; |
Temperature |
It operates between 10~38 centigrade |
Dimensions |
45 x 74 x 8.8 (W x D x H) (2U rackmount) PBS: See model PBS size |
Available colours |
Black (as per product photo) |
Vmware |
ESXi 7 and later |
Microsoft |
Windows 2016 Servers; Windows 2022 Servers;
|
Linux |
Proxmox VE 7 and later Proxmox Backup Server . ubuntu; |
