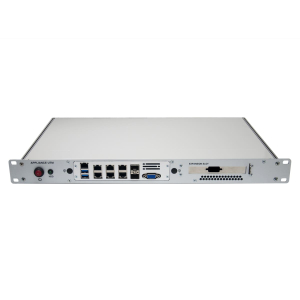

B1 Server Aluminum Appliance
€782.00
High performance hardware firewall - Silent hardware - 1U rackmount - 4 Core / 8 Core Intel Atom processor - Average consumption: 25 Watt - Front connectivity for convenient access to connectors.
The package includes: Appliance, Power Supply
Not included: Power cord
Availability:
In stock
SKU
B1SRVA48S_22
Single node details:
Product Name Appliance B1 Server Aluminum
Main board Supermicro
Chassis Rackmount 1U with front brackets
CPU Intel Atom Processor Single Socket FCBGA1310 supported
Memory
Up to 256GB Registered ECC DDR4-2400MHz,
Up to 64GB Unbuffered ECC / Non-ECC DDR4-2400MHz; in 4 DIMM slots
NIC
Onboard: Quad LAN with Intel® C3000 SoC, 1GbE
Expansion Slot
PCI-E 3.0 x4,
M.2 Interface: PCI-E 3.0 x2 and SATA
M.2 Form Factor: 2242, 2280
M.2 Key: M-Key
Power Supply 180W Power Supplies - Gold Level
Consumption 50 Watt - 110 Watts of power consumption depending on the configuration. Per node
USB
1 USB 3.0 (Type-A)
4 USB 2.0 (2 rear, 2 via headers)
Input / Output
Video Output: 1 VGA port (s)
Serial Port: 1 COM Port (s) (1 header)
DOM: 1 SuperDOM (Disk on Module) ports
TPM: 1 TPM Header
Front Panel
Buttons: Power On / Off button
LEDs: Power status LED - HDD activity LED - Network activity LEDs
Remote Management (IPMI)
. Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support on LAN and KVM support on LAN, KVM with HTML 5.
Temperature / Humidity
Operates between 0 ~ 60 degrees centigrade / 10% - 85% (non-condensing)
Dimensions
482.6mm x 285mm x 43.7mm (W x D x H) (1U rackmount) - node
Available Colors
Aluminum Gray (as per product photo)
VmWare: ESXi dalla 7 and newer
Microsoft
Windows 2016 Server;
Windows 2019 Server;
Windows 2022 Server;
Linux
Proxmox VE 6 and newer
Proxmox Backup Server
Ubuntu;
Debian;
Fedora;
