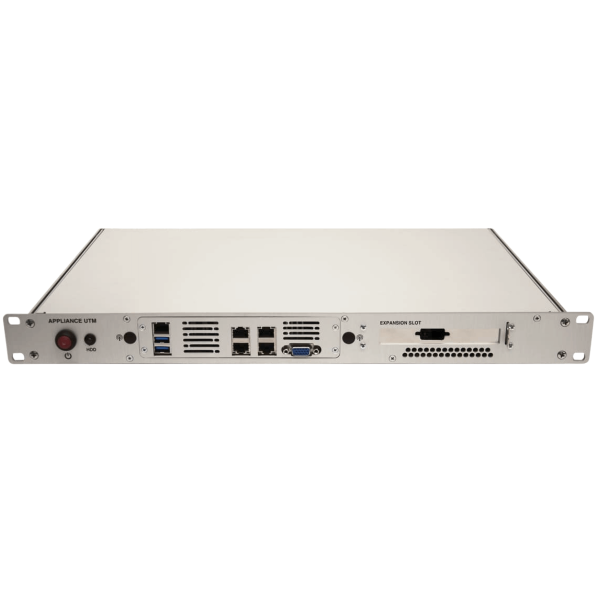

Proxmox Backup Server Rack A3

Proxmox Backup Server Rack A3 is the solution for medium -sized small and medium -sized companies or installations that allows you to have SATA or SSD technology in a 1U compact appliance. The Intel Xeon processor, 10 Gbit connectivity coupled to SSD SSD technology guarantee excellent performances during data restoration. Tested and certified for Proxmox Backup Server. It can mount up to 6 ssd or 2 3.5 "sate discs, Intel Xeon 8 core CPU, remote management system and IPMI diagnosis, up to 128 GB etc. RAM. Equipped with 2 x 10 Gigabit Intel Omboard connectivity and 2 NIC 1 Gigabit Intel Omboard to ensure maximum data restoration speed. This model is also available in the Tower version.

Proxmox Backup Server (PBS) is the innovative Proxmox backup solution that allows you to create and configure virtual resources backup environments in a simple and safe way, both in local and remote mode.

The package includes: appliance, power supply, power cord
It does not include: network cable

Availability:
In stock
SKU
PBSA38C-RK_23

Product name

Proxmox Backup Server Tower A3

Main board

Supermicro

Chassis

Tower

CPUs

Intel® Xeon® processor D-1541, Single socket FCBGA 1667, 8-Core

Memory

Up to 128GB ECC RDIMM DDR4 2400MHz in 4 sockets

NIC

Onboard: Dual LAN with Intel® Ethernet Controller I350-AM2

Dual 10GbE



Diet

180W Power Supplies - Gold Level

Consumption

50 Watts – 100 Watts of power consumption depending on configuration.

USB

1 USB 3.0 (Type-A)

4 USB 2.0 (2 rear, 2 via headers)

Inputs/Outputs

Video Output: 1 VGA port(s)

Serial Port: 1 COM Port(s) (1 header)

DOM: 1 SuperDOM (Disk on Module) ports

TPM: 1 TPM Header

Front panel

Buttons: Power On/Off button

LEDs: Power status LED - HDD activity LED - Network activity LEDs

Remote Management (IPMI)

. Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.

Temperature/Humidity

Operates between 0~60 centigrade / 10% - 85% (non- condensing )

Dimensions

Compact Mini-Tower: 279.4mm x 203.2mm x 228.6mm (D x W x H)

Available colours

Gray Aluminum (as per product photo)

BSD extension

TrueNAS - pfSense - OPNSense



VmWare : ESXi  7 and newer

Microsoft

Windows 2016 Servers;
Windows 2019 Servers;

Windows 2022 Servers;

Linux

Proxmox VE 6 and newer

Proxmox Backup Server

Ubuntu ;
Debian ;
