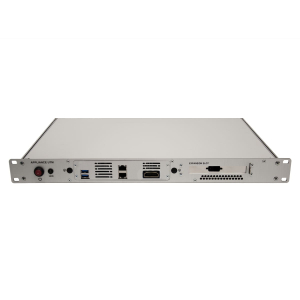

Proxmox Backup Server Rack B1 is the solution for small installations that allows you to have SATA or SSD technology in a compact 1U appliance, tested and certified for Proxmox Backup Server. It can mount up to 6 SSDs or 2 3.5” SATA disks, Intel Atom 4 Core CPU, IPMI remote management and diagnosis system, up to 256 GB ECC RAM, 4 onboard INTEL Gigabit NICs. This model is also available in the Tower version.
Proxmox Backup Server (PBS) is the innovative Proxmox backup solution that allows you to create and configure virtual resource backup environments easily and securely, both locally and remotely.
Package Includes: Appliance, Power Supply, Power Cord
Not included: Network cable.
Product name |
Proxmox Backup Server Rack B1 |
Main board |
Supermicro |
Chassis |
1U racks |
CPUs |
Intel Atom Processor Single Socket - Intel® Atom® C3558 CPU - 4 intel |
Memory |
Up to 256GB Registered ECC DDR4-2400MHz, |
NIC |
Onboard: Quad LAN with Intel® C3000 SoC, 1GbE
|
Diet |
180W Power Supplies - Gold Level |
Consumption |
15 Watts – 50 Watts of power consumption depending on configuration. |
USB |
1 USB 3.0 (Type-A) 4 USB 2.0 (2 rear, 2 via headers) |
Inputs/Outputs |
Video Output: 1 VGA port(s) Serial Port: 1 COM Port(s) (1 header) DOM: 1 SuperDOM (Disk on Module) ports TPM: 1 TPM Header |
Front panel |
Buttons: Power On/Off button LEDs: Power status LED - HDD activity LED - Network activity LEDs |
Remote Management (IPMI) |
. Support for Intelligent Platform Management Interface v.2.0; |
Temperature/Humidity |
Operates between 0~60 centigrade / 10% - 85% (non-condensing) |
Dimensions |
482.6mm x 285mm x 43.7mm (W x D x H) (1U rackmount) |
Available colours |
Gray Aluminum (as per product photo) |
BSD extension |
TrueNAS - pfSense - OPNSense |
|
VmWare: ESXi 7 and newer |
Microsoft |
Windows 2016 Servers; Windows 2022 Servers; |
Linux |
Proxmox VE 6 and newer Proxmox Backup Server ubuntu;
|
