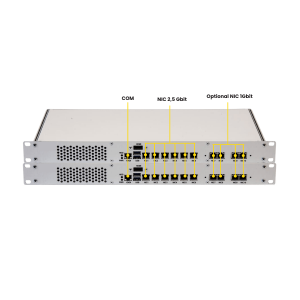

A2B Cluster

€2,831.00

A2B Cluster offers high reliability in a compact and simple system. Suitable for small and medium-sized environments - Full software redundancy for ALL components - Full support for the CARP protocol of pfSense and OPNsense - Intel® Xeon processor with 4 or 8 cores - Size: 2U rack mount - Compatible with all common Open Source and non-Open Source operating systems.

Product details:

CPU: Intel Xeon 4 or 8 core
RAM: up to 256 GB
Connectivity: dual 10 Gbit SFP+, dual 10 Gbit copper, 4 Gbit NICs
Chassis: aluminum
Color: gray
Included in the package: Appliance, Power supply

View all details ↓

Availability:
In stock
SKU
A2BCLA6_24

Firewall Details for each Device

Product Name: A2B Cluster
Main board: Supermicro
Chassis: Rackmount 1U with rack mounting via front brackets
CPU:

  • Xeon 4 Core: Intel® Xeon® Processor D-2123IT, CPU TDP supports Up to 60W TDP
  • Xeon 8 Core: Intel® Xeon® Processor D-2146NT, CPU TDP supports Up to 80W TDP

Memory: Up to 256 GB Registered ECC RDIMM, DDR4-2133MHz; 4 DIMM slots
NIC:

  • Quad LAN - Intel® Ethernet Controller I350-AM4
  • Dual LAN - 10G SFP+ LAN via SoC
  • Dual LAN with 10G SFP+ LAN via SoC

Power Supply: 180W Power Supplies – Gold Level
Expansion Slots:

  • M.2 Interface 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2
  • Form Factor: 2280, 3042
  • Key: M-Key, B-Key

Power Consumption: 78 Watt at full load with 2.5” SATA HDD
USB: 2 USB 3.0 ports
Input/Output:

  • 4 SATA3 (6Gbps) ports
  • 1 VGA port
  • 1 IPMI port
  • 1 SuperDOM (Disk on Module) power connectors

Front Panel: Power On/Off, HDD LED
LEDs: HDD LED
Supported Systems:

  • pfSense, FreeBSD, Zeroshell, ipCop, ipFire
  • Microsoft: Windows 7/8/9/10/2008 Server/2012 Server/Proxmox/VmWare Esxi
  • Ubuntu/Debian/Centos/Fedora/Astaro UTM 9.1 and newer/Kerio Control/Endian Firewall/general Linux OS

Remote Management:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual support on LAN and KVM support on LAN

Temperature/Humidity: Operates between 0~60 degrees Celsius (Recommended FAN system)
Dimensions: 482.6 mm x 285 mm x 43.7 mm (WxDxH)
Available Colors: Gray aluminum
