Proxmox VE Cluster Datacenter M2A

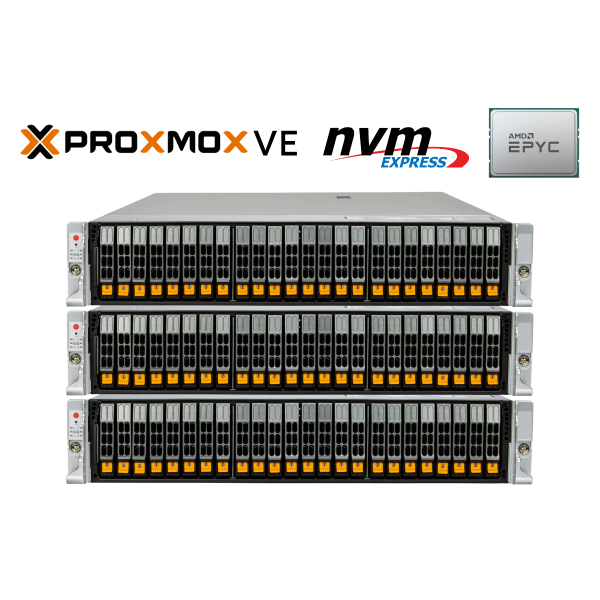

Hyperconverged Proxmox cluster composed of 3 2U Rackmount Servers tested and certified for Proxmox VE, designed for companies that need high reliability, high resource uptime, high storage expansion capacity and very powerful CPUs.

It offers high performances provided by the CPU AMD EPYC™ 9005 Series Processor, up to 576 Cores, up to 72 Server Datacenter class NVMe disks, 10/25/40/100 Gbit QSFP+ connectivity dedicated to hyperconvergence (Ceph) and virtual resources such as CT and VM, redundant power supplies on both Nodes and Switches.

It is supplied, depending on needs, with a single switch or in a redundant configuration to eliminate any SPOF (single point of failure). The Networking solution studied is proposed depending on the hardware characteristics of the Cluster.

Below you can choose how to compose the 3 nodes that make up the Cluster. Each of the 3 Servers will have the same hardware components.

Servers are shipped with rack-mounting sleds.

If you don't know which options to choose, leave the default value. Before sending the quote, our accounts will validate the components you have chosen.

Availability:

In stock

SKU

M1ASUC1S24P2_24

CPU

RAM

Pre-installed operating system

Storage for Operating System

Storage Ceph: hyperconverged space

Networking dedicated to Ceph

Additional network cards - Slot 1

Additional network cards - Slot 2

Network switch

Installation and configuration

Delivery

Technical support during installation

Proxmox Enterprise Support

System upgrade plan

Personalized technical course

Proactive Monitoring

System conditions

Optional warranty

Tell us who you are

Qty:

Details

DETAILS of the single node:

Product Name: Proxmox Cluster Datacenter M2A
Main board: H13SSH
Chassis: 2U Rackmount with rack mounting using sleds

CPU:
Single 5th Generation AMD EPYC™️ 9005 Series Processors
Single 4th Generation AMD EPYC™️ 9004 Series Processors
Memory: 24 DIMMs
Up to 3TB 4800MT/s ECC DDR5 RDIMM
Up to 6TB 4000MT/s ECC DDR5 RDIMM
NIC Supports the following connectivity:
NIC 1 Gbit Copper RJ45 connector
NIC 10 Gbit Copper RJ45 connector
NIC 10 Gbit SFP+ Fiber Optic LC connector
25Gbit SFP28+ NIC
40 Gbit QSFP+ NIC
100Gbit QSFP+ NIC
Integrated IPMI 2.0 + KVM with dedicated LAN
Expansion Slots:
1 PCIe 5.0 x16 Right Riser Slot,
1 PCIe 5.0 x16 Left Riser Slot,
2 PCIe 5.0 x16 AIOM Networking SlotM.2 Interface: 2 PCI-E 4.0 x4

M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2280/22110
Key: M-Key
Power: 1600W Redundant Titanium Level PER NODE
Switch: redundant power supplies.
Consumption: 100 Watts – 850 Watts of power consumption depending on configuration.
USB 2 USB 2.0 port(s) (2 front)
2 USB 3.0 port(s) (2 rear)
Input/Output 24 x 2.5" hot-swappable NVMe/SATA/SAS
LAN Networking provided via AIOM - 1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (rear)
COM 1 COM Port (rear)
Video 1 VGA port

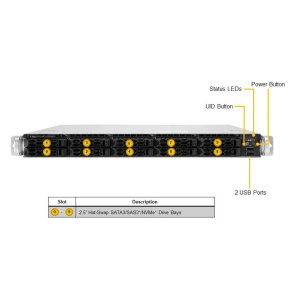

Front Panel: Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status)
Remote Management (IPMI): . Support for Intelligent Platform Management Interface v.2.0;
. IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.
Temperature: Operates between 10~35 degrees centigrade
Dimensions: 76cm x 44cm x 88.9mm (W x D x H) (1U rackmount)
Available Colors: Black (as per product photo)
