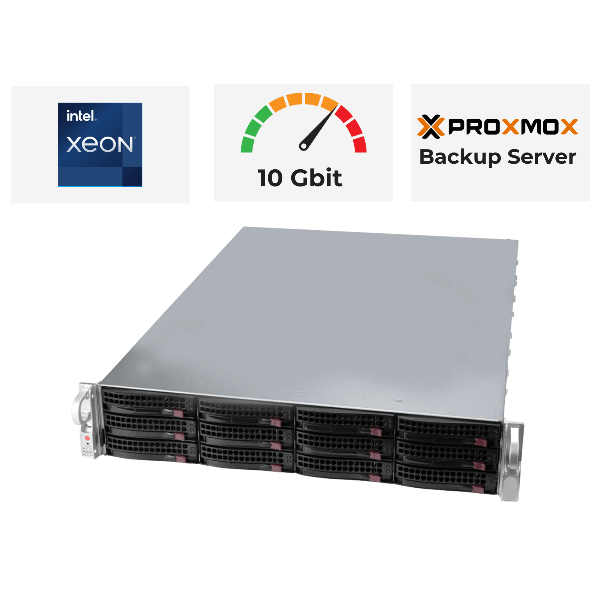

Proxmox Backup Server Rack D3

Proxmox Backup Server Rack D3 is the solution for large installations that need considerable space and performances. It allows you to have SATA and SSD technology in a Datacenter Enterprise class 2U rack appliance. The Intel Xeon processor up to 32 cores, the 10 Gbit connectivity coupled with the SSD storage technology guarantee excellent performances during data recovery. Tested and certified for Proxmox Backup Server. It can mount up to 14 SSDs or 12 3.5" SATA disks and 2 SSDs, Intel Xeon CPU, IPMI remote management and diagnosis system, up to 2 TB ECC RAM. Equipped with 2 X 10 Gbit INTEL connectivity or 25 Gbit on request.

Proxmox Backup Server (PBS) is the innovative Proxmox backup solution that allows you to create and configure virtual resource backup environments easily and securely, both locally and remotely.

Package Includes: Appliance, Power Supply, Power Cord, Rack Mounting Slides.
Not included: Network cable

Availability: In stock

SKU

PBSD3MC-RK_23

Data storage technology

SSD Storage space

SATA Storage space

Storage for Operating System

Pre-installed operating system and license

Technical support hours

Upgrade plan

Proactive Monitoring

Optional warranty

Details

Product name	Proxmox Backup Server Rack D3
Main board	Supermicro
Chassis	2U racks
CPUs	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors.
Memory	Up to 2TB DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
NIC	Onboard: Intel® Ethernet Controller X550 2x 10GbE RJ45
Diet	2 Titanium 800W Power Supplies
Consumption	90 Watts – 500 Watts of power consumption depending on configuration.
USB	1 USB 3.0 (Type-A) 4 USB 2.0 (2 rear, 2 via headers)
Inputs/Outputs	Video Output: 1 VGA port(s) Serial Port: 1 COM Port(s) (1 header) DOM: 1 SuperDOM (Disk on Module) ports TPM : 1 TPM Header
Front panel	Buttons: Power On/Off button LEDs: Power status LED - HDD activity LED - Network activity LEDs
Remote Management (IPMI)	. Support for Intelligent Platform Management Interface v.2.0; . IPMI 2.0 with virtual support over LAN and KVM support over LAN, KVM with HTML 5.
Temperature/Humidity	Operates between 0~60 centigrade / 10% - 85% (non- condensing )
Dimensions	438mm x 650mm x 89mm (W x D x H) (2U Rackmount)
Available colours	Gray / Black (as per product photo)

Operating System

BSD extension	TrueNAS - pfSense - OPNSense
	VmWare : ESXi from 7 onwards
Microsoft	Windows 2016 Servers; Windows 2019 Servers; Windows 2022 Servers;
Linux	Proxmox VE from 6 onwards Proxmox Backup Server ubuntu; Debian ;
