Cluster Iperconvergente (HCI) Proxmox a 3 Nodi A2B

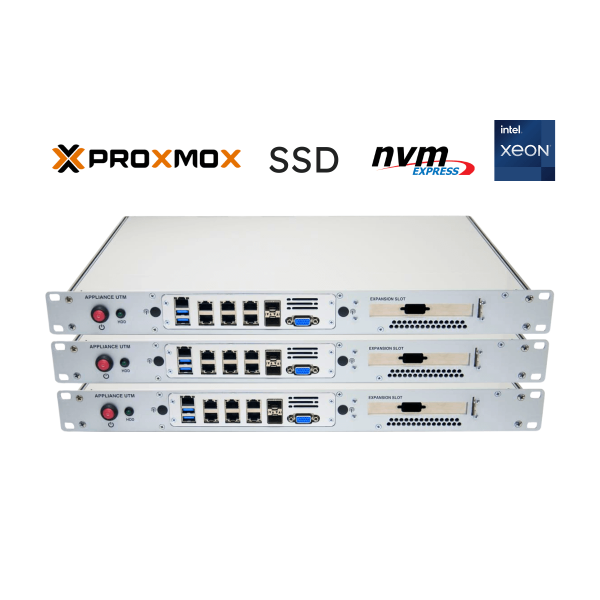

3-Node A2B Proxmox VE Hyperconverged Cluster, consisting of compact 1U rackmount servers, tested and certified for Proxmox VE. Designed for extremely small environments, it is ideal for companies requiring high reliability and maximum resource uptime.
Up to 18 SSD/NVMe drives for hyperconverged data and operating system storage. Each node is equipped by default with two 10 Gbit NICs, four 1 Gbit Copper NICs, and two 10 Gbit Fiber NICs (dedicated to Ceph).
Below, you can choose how to configure the three nodes that make up the cluster. Each of the three servers will have the same hardware components. If you're unsure which components to choose, leave the default values. Before submitting the quote, our account staff will validate your selection.
The package includes: three servers, one power cable for each node, and any network cabling (if applicable).
Availability:
In stock
SKU
CA2BC3S18P1_25
Cluster Details by Device:
Product Name: Proxmox 3-Node A2B Hyperconverged (HCI) Cluster
Mainboard: Supermicro
Chassis: 1U rackmount with front brackets
CPU:
4-Core Xeon CPU: Intel® Xeon® Processor D-2123IT, CPU TDP supports up to 60W TDP
8-Core Xeon CPU: Intel® Xeon® Processor D-2146NT, CPU TDP supports up to 80W TDP
12-Core Xeon CPU: Intel® Xeon® Processor D-2166NT, CPU TDP supports up to 85W TDP
16-Core Xeon CPU: Intel® Xeon® Processor D-2183NIT, CPU TDP supports up to 100W TDP
Memory: Up to 256 GB Registered ECC RDIMM, DDR4-2133MHz; 4 DIMM slots
NIC:
Quad LAN - Intel® Ethernet Controller I350-AM4
Dual LAN - 10G SFP+ LAN via SoC
Dual LAN with 10G SFP+ LAN via SoC
Power supply: 180W Power Supplies – Gold Level
Expansion Slots:
M.2 Interface 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2
Form Factor: 2280, 3042
Key: M-Key, B-Key
Consumption: 78 Watts of power consumption, at full load with H.D. 2.5" SATA, 4-core CPU.
USB: 2 USB 3.0 ports
Input/Output:
4 SATA3 (6Gbps) ports
1 VGA port
1 IPMI port
1 SuperDOM (Disk on Module) power connectors
Front Panel: Power On/Off, HDD LED
LEDs: HDD LED
Remote Management:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual LAN support and KVM support over LAN
Temperature/Humidity: Operates between 0-60 degrees Celsius (FAN system recommended)
Dimensions: 482.6 mm x 285 mm x 43.7 mm (W x D x H)
Available Colors: Aluminum Gray
