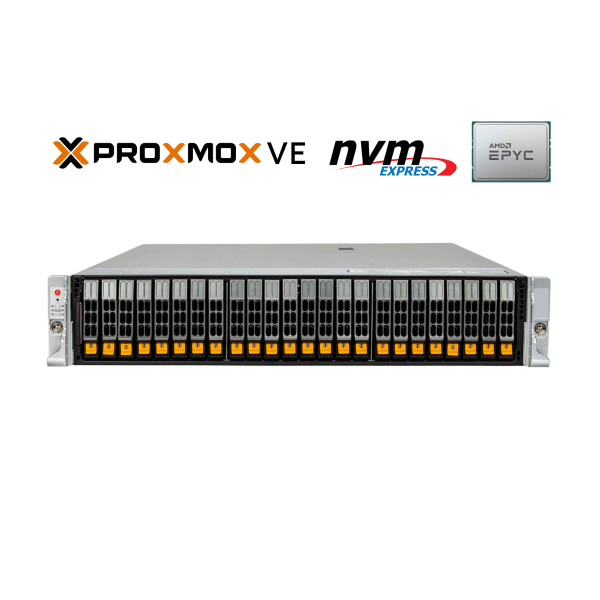

Server Proxmox VE Datacenter M2A

2U Rackmount Server tested and certified for Proxmox VE, designed for companies that require performance and reliability.

It offers high performance provided by AMD EPYC™ 9005 Series Processor CPUs up to 192 cores, up to 24 Enterprise Datacenter-level NVMe disks, equipped with 10/25/40/100 Gbit QSFP+ connectivity, redundant Titanium level power supplies.

The server comes with rack mounting sleds.

Availability:
In stock
SKU
M2ASU24P2_25

Product Name: Proxmox VE Datacenter M2A Server
Main board: H13SSH
Chassis: 2U Rackmount with rack mounting using sleds
CPU:
Single 5th Generation AMD EPYC™️ 9005 Series Processors
Single 4th Generation AMD EPYC™️ 9004 Series Processors
Memory: 24 DIMMs
Up to 3TB 4800MT/s ECC DDR5 RDIMM
Up to 6TB 4000MT/s ECC DDR5 RDIMM
NIC Supports the following connectivity:
NIC 1 Gbit Copper RJ45 connector
NIC 10 Gbit Copper RJ45 connector
NIC 10 Gbit SFP+ Fiber Optic LC connector
25Gbit SFP28+ NIC
40 Gbit QSFP+ NIC
100Gbit QSFP+ NIC
Integrated IPMI 2.0 + KVM with dedicated LAN
Expansion Slots
1 PCIe 5.0 x16 Right Riser Slot,
1 PCIe 5.0 x16 Left Riser Slot,
2 PCIe 5.0 x16 AIOM Networking SlotM.2 Interface: 2 PCI-E 4.0 x4

M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2280/22110
Key: M-Key
Power supply: 1600W Redundant Titanium Level
Consumption: 400 Watts of energy consumption a depending on configuration.
USB 2 USB 2.0 port(s) (2 front)
